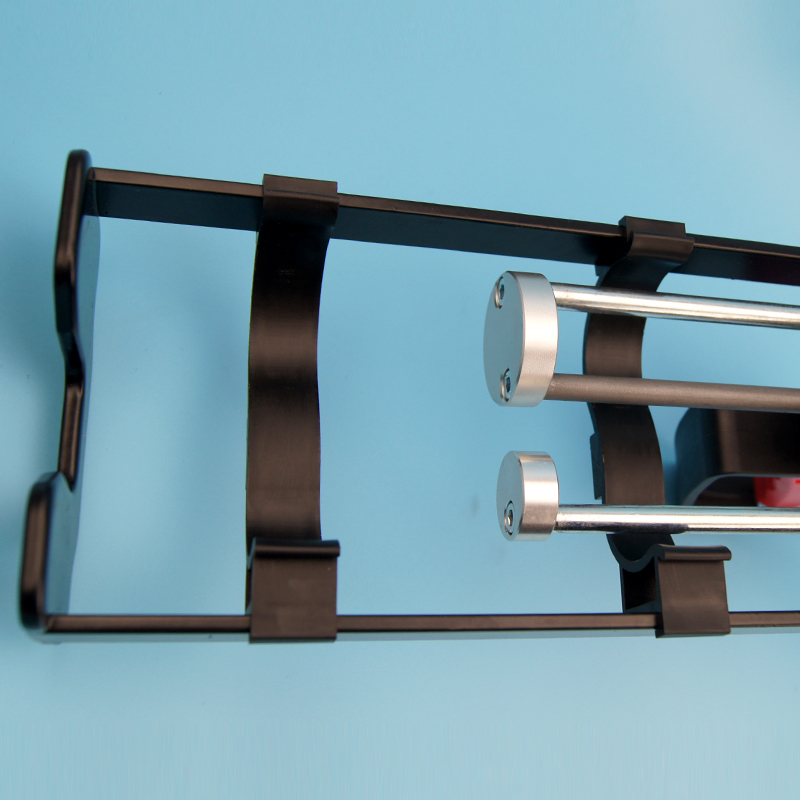

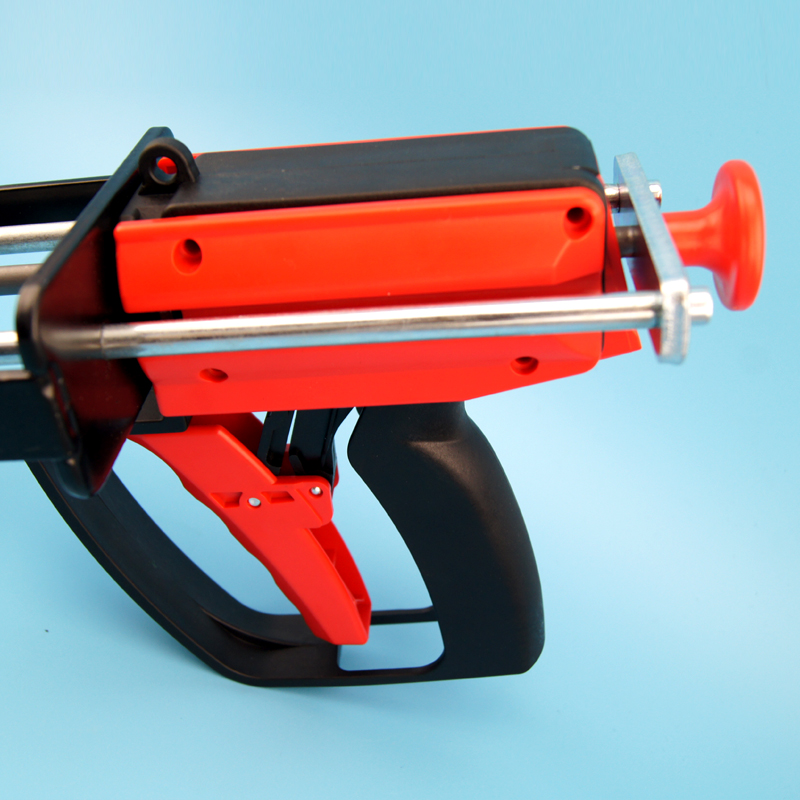

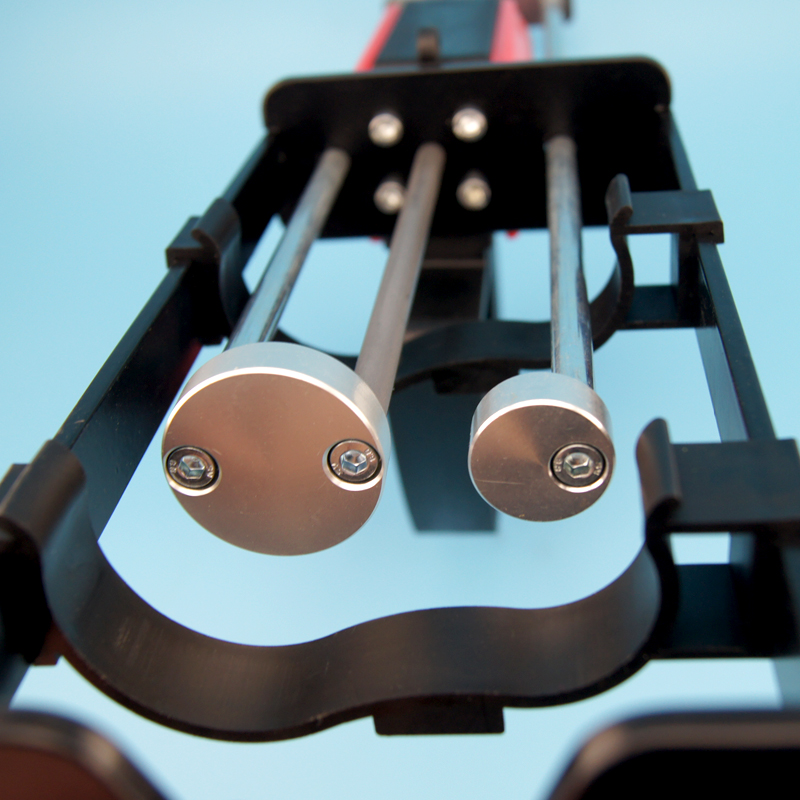

400ml 2:1 Two-component Manual Caulking Gun (KS1-400ml 2:1)
400ml 2:1 Two-component Manual Caulking Gun Description: KS1-400ml 2:1two-componentcaulking gun Cartridge 400ml (2:1) Weight1.1kg/piece Material: Nylon frame, carbonized rod Packing 10cases/carton Inn
Overview
400ml 2:1 Two-component Manual Caulking Gun
Description:
KS1-400ml 2:1 two-component caulking gun
KS1-400ml 2:1 two-component caulking gun
Cartridge 400ml (2:1)
Weight1.1kg/piece
Material: Nylon frame, carbonized rod
Packing 10cases/carton
Inner packing340mm×195mm×115mm
Outer packing630mm×355mm×410mm
OEM & ANY COLOUR ACCEPTABLE
Instructions:
1. Open the swfit of handle and then pull the rack to reach the maximum.
2. Put chemical material into two-component cartridge.
3. Promote the trigger to make the chemical material come out smoothly from the cartidge
4. After using, put the rack back to the original location.
5. Remove the cartridge, then to repeat the above operation.
Our Service:
Online fast professional technical advice.
Best quality products.
Best after-sales Service.
Complaint Service.
OEM produce, if none of our products meet your requirement, pls contact us for customizing.
Features
Our plastic caulking guns have 2 strong points :
1. Long service life: Life duration is 5 times more than iron caulking gun.
2 High-efficiency:The force is up to 450kg-500kg and save your strength 5 times more than common iron caulking gun.
Brake Release
Push the brake handle forward to release the drive rod and to remove the piston pressure.
Cleaning & Maintenance
It is very important to keep the drive rod clean and to oil it frequently in order to ensure a better function.
Recover the Movement of the Piston
Symptom: Back-lash of the brake
Remedy: Turn the adjusting screw clockwise the whole way down until the drive rod can be moved back and forth.
To eliminate the back-lash, which may occur after many operations, follow the instructions below:
Turn the adjusting screw counter-clockwise until the drive rod can be exactly moved back and forth.

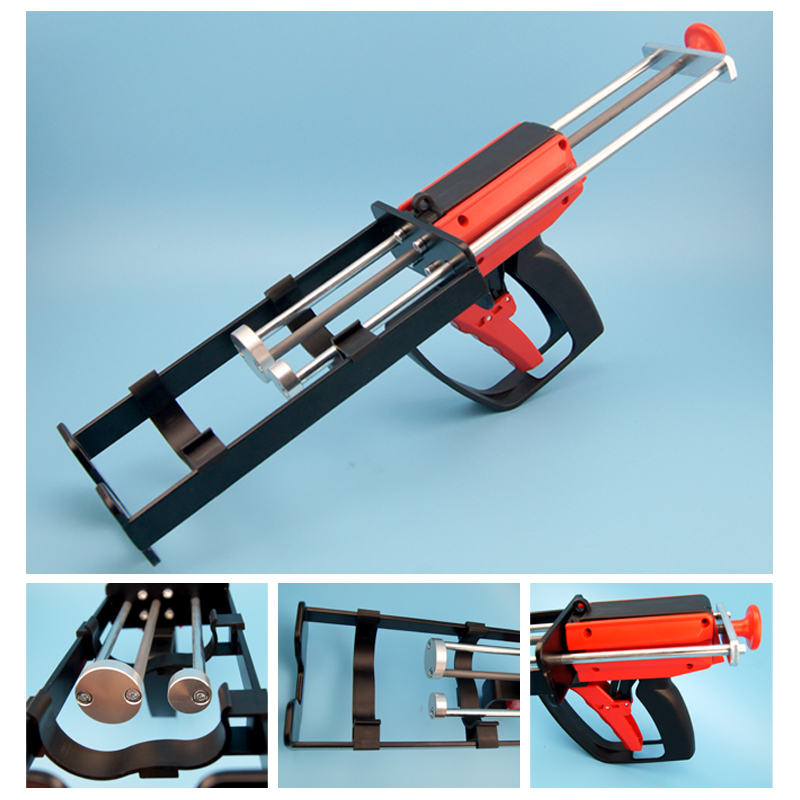

Gallery

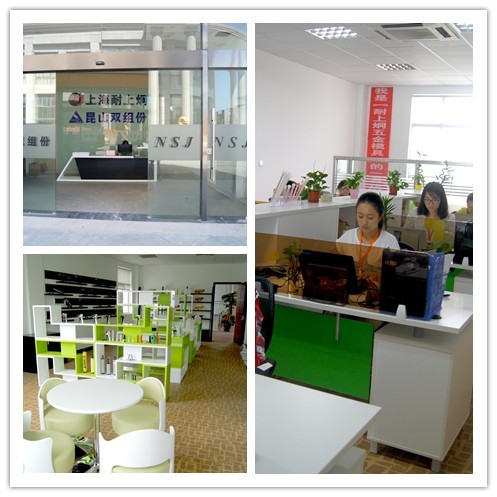

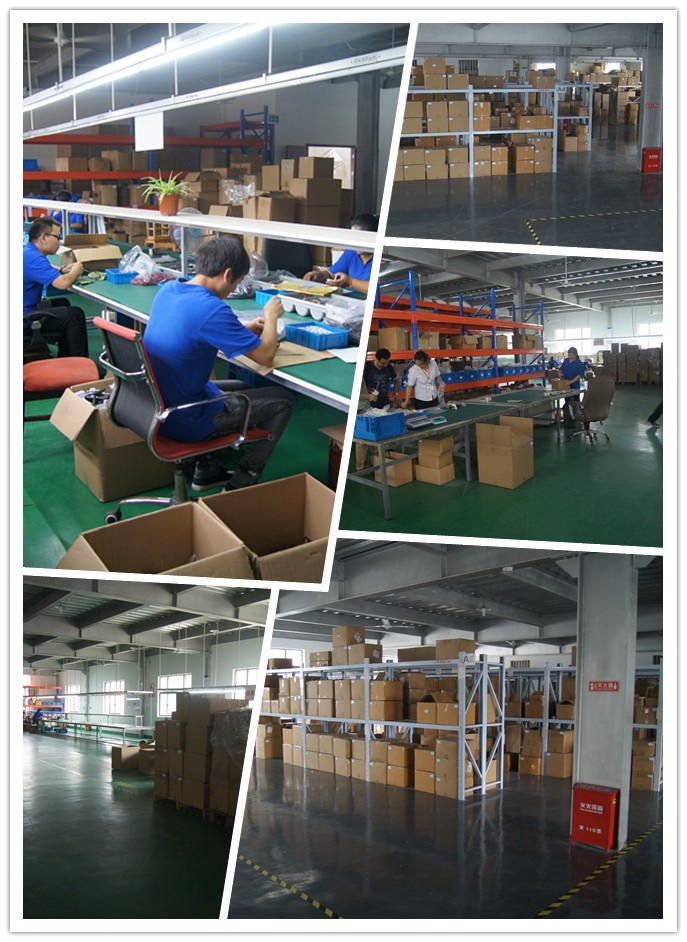

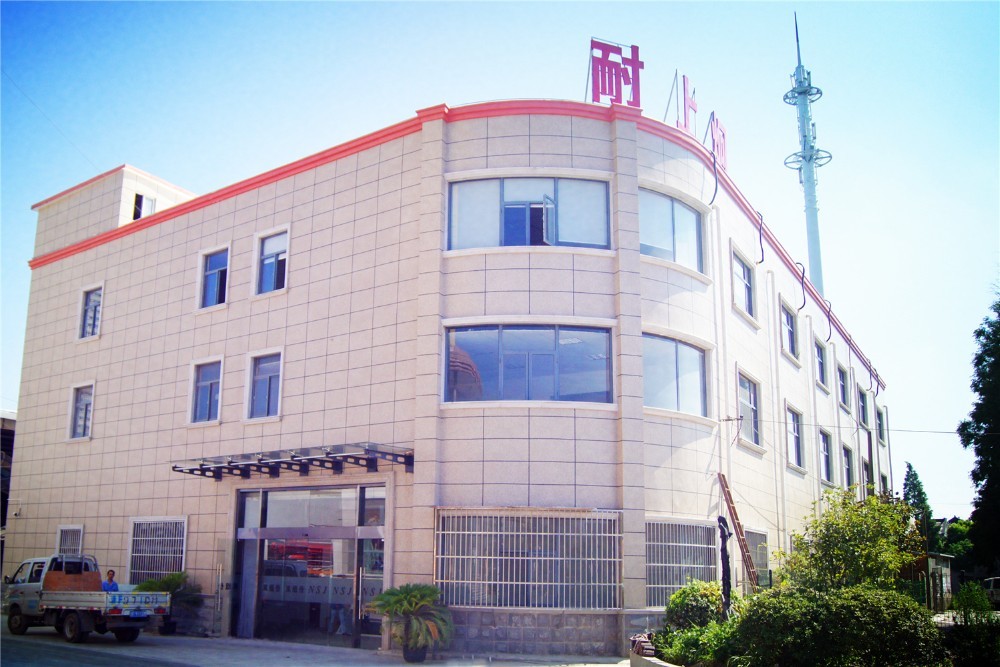

Company Show
Certification
Application
Suggested Use in Fields
· Construction, Concrete, Industry, Hardware, Anchor&Fastener, Waterproof
· Auotmative, Railway, Tunnel, Appliances, Aerospace, Maintenance and Repair
· Marine, Floor, Chemical, Paint etc.
Suggested Use Materials
· Epoxies, Acrylics, Silicone Sealants, Resins, Polyesters.
· Epoxy Acrylates, Hybrids, Urethanes.
