Series K1 Static Mixers-------Bayonet Lock Type
Our series A static mixers feature simple twist-lock mounting. Its first element automatically aligns itself precisely with the dividing wall of 50ml cartridge, separating Part A and Part B. As a result of this design, this static mixers prevents curing at the interface of the cartridge.

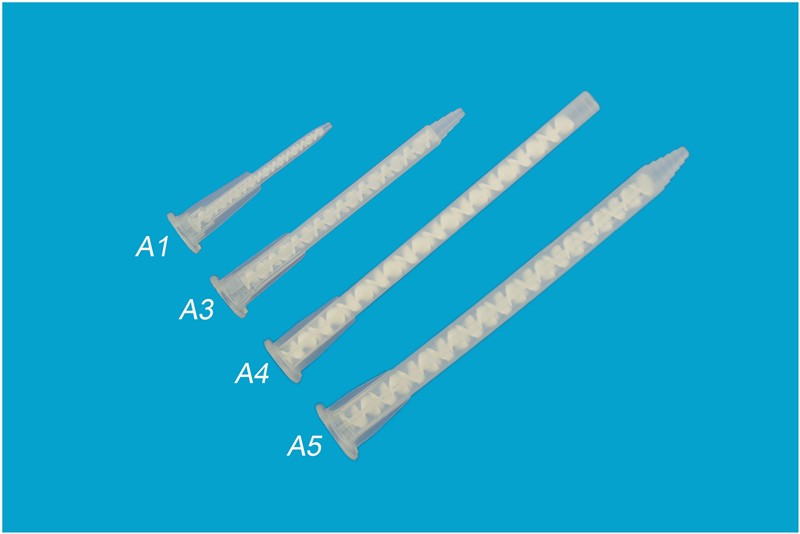

Our Series A static mixer comes in a wide variety of sizes and will mix virtually any 2-part material including epoxies, silicones, urethanes, acrylics and polyesters, and can also be used for a wide variety of low pressure meter-mix applications.
|

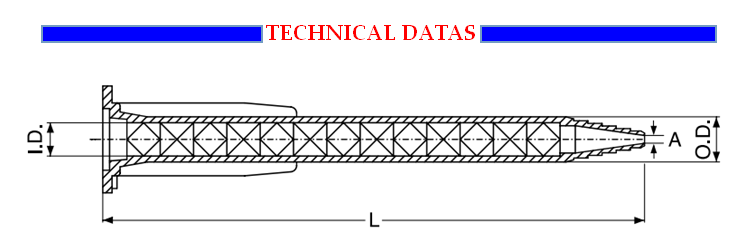

Part No |
Item No. |
Outlet ID |
Connector ID |
Elements |
Element Length |
Element Diameter |
Total Length |
|
K1-1 |
KS03-17 |
0.85mm |
7mm |
17 |
53mm |
3mm |
63mm |
|
K1-5 |
KS16 |
1.8mm |
7mm |
16 |
63mm |
5.4mm |
84mm |
|
K1-2 |
KS5.4-17 |
1.5mm |
7mm |
17 |
83mm |
5.4mm |
103mm |
|
K1-3 |
KS6.3-20 |
5mm |
7mm |
20 |
123mm |
6.3mm |
134mm |
|
K1-4 |
KS6.3-21 |
1.5mm |
7mm |
21 |
132mm |
6.3mm |
155mm |
|
Remarks: Outer Housing: PP Elements: POM Retaining Method: Bayonet Style, Twist-lock Fit for 50ml/180ml two-component cartridges. |
|||||||
