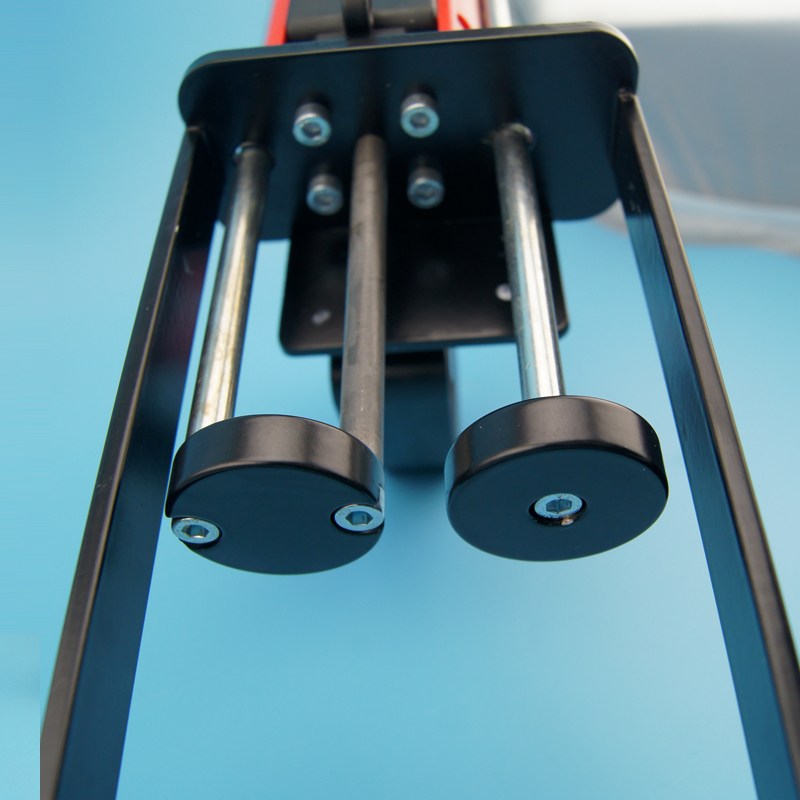

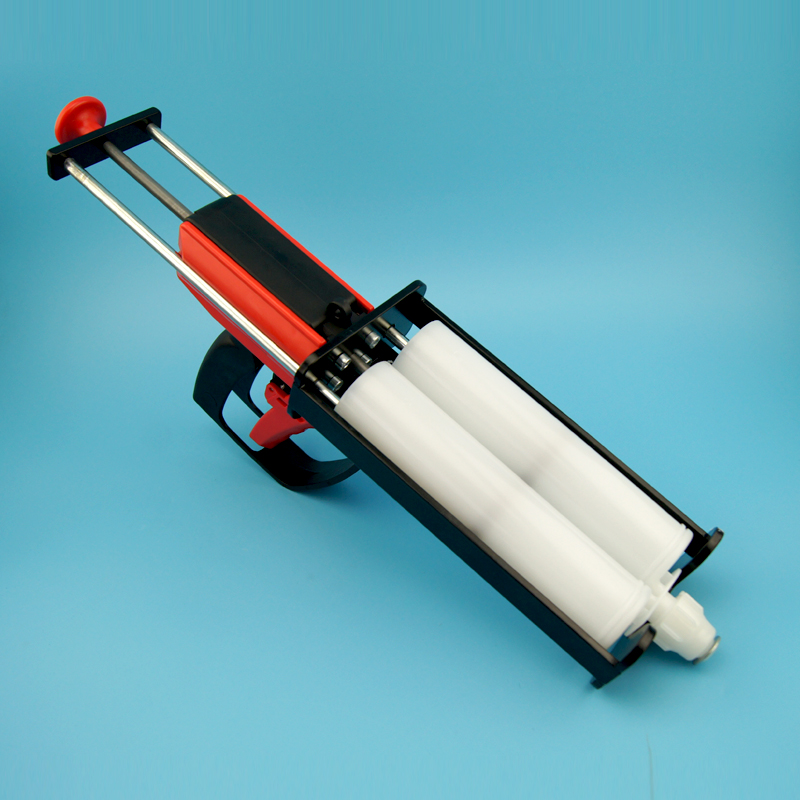

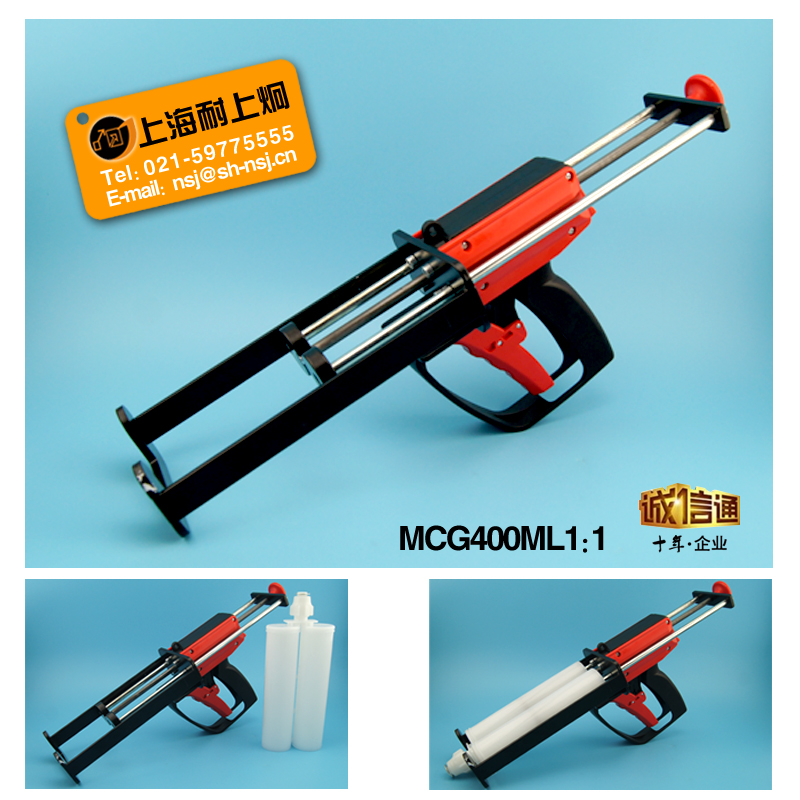

400ml 1:1 Two-component Caulking Gun (KS1-400ml1:1 )
400ml 1:1 Two-component Caulking Gun Item no.: KS1-400ml1:1 Color: yellow,any color available Cartridge :two-component Capacity: 400ml (1:1) Material: Reinforced Nylon Frame Stainless Steel Rod Weight
Overview
400ml 1:1 Two-component Caulking Gun
Item no.:KS1-400ml1:1
Color: yellow,any color available
Cartridge :two-component
Capacity: 400ml (1:1)
Material: Reinforced Nylon Frame
Stainless Steel Rod
Weight: 1.1kg/piece
Packing: 10pcs/carton
Inner packing:340mm×195mm×115mm
Outer packing:630mm×355mm×410mm
Instructions:
1. Open the swfit of handle and then pull the rack to reach the maximum.
2. Put chemical material into two-component cartridge.
3. Promote the trigger to make the chemical material come out smoothly from the cartidge
4. After using, put the rack back to the original location.
5. Remove the cartridge, then to repeat the above operation.
Our Service:
Online fast professional technical advice
Best quality products.
Best after-sales Service
Complaint Service
OEM produce, if none of our products meet your requirement, pls contact us for customizing.
Features
Our plastic caulking guns have 2 strong points:
1. Long service life: Life duration is 5 times more than iron caulking gun.
2 High-efficiency:The force is up to 450kg-500kg and save your strength 5 times more than common iron caulking gun.
Brake Release
Push the brake handle forward to release the drive rod and to remove the piston pressure.
Cleaning & Maintenance
It is very important to keep the drive rod clean and to oil it frequently in order to ensure a better function.
Recover the Movement of the Piston
Symptom: Back-lash of the brake
Remedy: Turn the adjusting screw clockwise the whole way down until the drive rod can be moved back and forth.
To eliminate the back-lash, which may occur after many operations, follow the instructions below:
Turn the adjusting screw counter-clockwise until the drive rod can be exactly moved back and forth.
Gallery
Application
Suggested Use in Fields
· Construction, Concrete, Industry, Hardware, Anchor&Fastener, Waterproof
· Auotmative, Railway, Tunnel, Appliances, Aerospace, Maintenance and Repair
· Marine, Floor, Chemical, Paint etc.
Suggested Use Materials
· Epoxies, Acrylics, Silicone Sealants, Resins, Polyesters.
· Epoxy Acrylates, Hybrids, Urethanes.
· Polysulfides, foams, Polymers, polyureas
